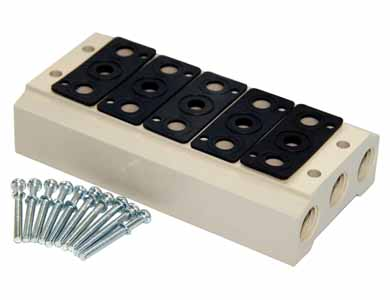

Valve plate for 5/2 and 5/3 valves

Parameter Value
Valve types 5/2, 5/3 with centre position vented/pressurised/closed
Valve sizes 100, 200, 300, 400
Number of stations Up to 16 stations
Connection ports 1/8″ (pilot), M5×0.8, 1/8″, 1/4″, 3/8″, 1/2″
Required air filtration 40 μm
Flow rates [Nl/min] 280–2790
Operating pressure [MPa] 0.15–0.80 (22–116 psi)
Operating temperature -20–70 °C (-40–70 °C low-temperature version) (-4–158 °F / -40–158 °F)
