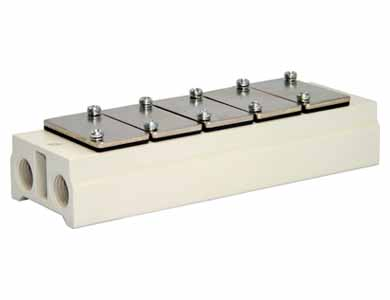

Valve plate for 3/2 valves

Parameter Value
Valve types 3/2 mono- and bi-stable
Valve sizes 100, 200, 300
Number of stations Up to 30 stations
Connection ports M5×0.8, 1/8″, 1/4″, 3/8″
Required air filtration 40 μm
Flow rates [Nl/min] 310–1670
Operating pressure [MPa] 0.15–0.80 (22–116 psi)
Operating temperature -20–70 °C (-40–70 °C low-temperature version) (-4–158 °F / -40–158 °F)
