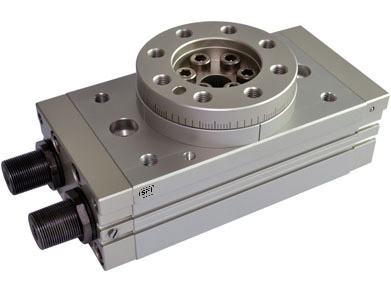

Rotary tables with dual-piston drive

Parameter Value
Torque at 0.5 MPa (73 psi) [Nm] 0.2–22.0
Operating pressure [MPa] 0.15–0.7 MPa (22–101 psi);
0.25–0.7 MPa for HRQ2/3 (36–101 psi);
0.2–0.7 MPa for HRQ7 (29–101 psi)
Operating temperature -20–70 °C (-4–158 °F)
Adjustable rotation angle 0–190°
Stroke cushioning Elastic or hydraulic shock absorbers
Rotation repeatability 0.2°; 0.05° with hydraulic shock absorbers
Port connections M5×0.8, M5×0.8 or 1/8″ (sizes 30–200)
