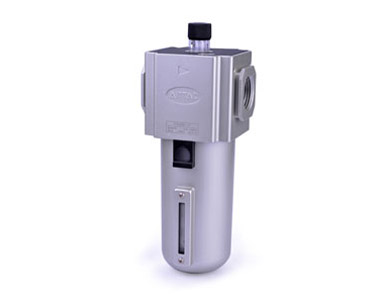

Lubricator

Parameter Value
Body sizes (modular mounting) 100, 200, 300, 400, 500, 600
Flow for supply at 0.7 MPa (101 psi) and pressure drop of 0.1 MPa (14 psi) [Nl/min] 660÷13200
Bowl construction Polycarbonate, polycarbonate with metal guard, metal, nylon with metal guard
Oil bowl capacity [cm³] 9÷410
Recommended lubricating oil ISO VG32 or equivalent
Connection ports M5÷1″
Required supply pressure [MPa] 0.15÷1.00 (22÷145 psi)
Operating temperature -5÷70°C without freezing (-40÷70°C low-temperature version) (23÷158 / -40÷158°F)
